8011 Flexible Duct Aluminum Foil: The Engineered Backbone of Modern HVAC

Within the complex network of modern heating, ventilation, and air conditioning systems, a seemingly simple material plays a critical role: flexible ducting. At the core of these ducts lies a specialized aluminum foil, most commonly alloy 8011. This isn't ordinary kitchen foil; it's a high-performance material meticulously engineered to meet the demanding requirements of efficient and durable air distribution. Understanding its properties reveals why it's the preferred choice worldwide.

Decoding the Alloy: Why 8011?
Aluminum alloys are designated by four-digit numbers indicating their primary alloying elements. The "8XXX" series denotes alloys where the major addition is neither copper nor magnesium/manganese/silicon, but often iron. Specifically:

• Iron: The primary alloying element in 8011. Iron significantly enhances the foil's tensile strength and puncture resistance without making it brittle. This is crucial for ducts that need to withstand handling, installation stresses, and potential impacts during their service life.

• Silicon: Added in controlled amounts, silicon improves formability during the rolling process and contributes to strength. It aids in achieving the thin, consistent gauge required while maintaining integrity.

• Balance - Pure Aluminum: The remainder is high-purity aluminum, providing inherent benefits like excellent corrosion resistance, formability, light weight, and thermal conductivity.

This specific combination strikes the ideal balance between strength, flexibility, and durability needed for flexible duct cores.

The Manufacturing Journey: From Ingot to Precision Foil
Producing 8011 foil for ducts is a sophisticated process:

1. Casting & Homogenization: Molten 8011 alloy is cast into large ingots. These ingots undergo homogenization to ensure a uniform microstructure.

2. Hot Rolling: The ingots are heated and rolled into thicker coils, breaking down the cast structure.

3. Cold Rolling: The coils undergo multiple passes through cold rolling mills. This is where the material is progressively thinned down to the precise gauge required for duct foil. Cold work hardens the aluminum.

4. Intermediate Annealing: To restore ductility lost during cold rolling and allow further thinning, the foil passes through annealing ovens at controlled temperatures. Precise control here is vital for final properties.

5. Final Cold Rolling & Finishing: A final cold rolling pass achieves the exact target thickness and imparts the desired surface finish and temper .

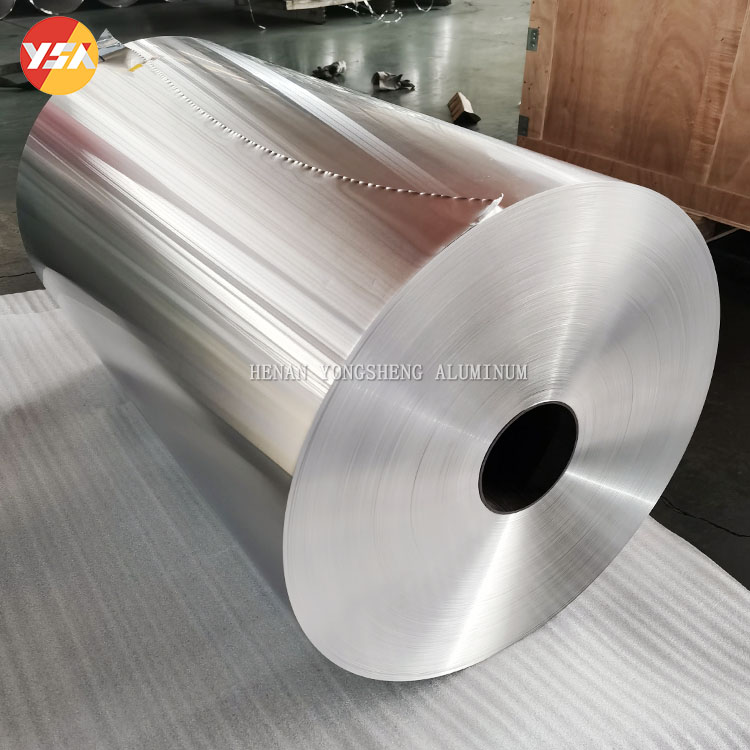

6. Slitting & Coiling: The wide master coil is slit into narrower widths suitable for duct manufacturing and rewound.

Key Properties Driving HVAC Performance
8011 foil excels due to its tailored characteristics:

• Superior Strength-to-Weight Ratio: Despite being incredibly thin, the iron and silicon additions provide remarkable tensile strength and puncture resistance. This prevents the duct from collapsing under vacuum pressure or tearing during installation and use.

• Excellent Formability & Flexibility: The alloy composition and temper allow the foil to be easily corrugated or spirally wound during duct manufacturing without cracking. This inherent flexibility is essential for the duct to bend around obstacles during installation.

• Outstanding Barrier Properties: Aluminum foil forms a near-perfect barrier against moisture vapor and air infiltration. This prevents condensation within the insulation layer and ensures efficient, leak-free airflow.

• Inherent Corrosion Resistance: Aluminum naturally forms a protective oxide layer. 8011 maintains good corrosion resistance in typical indoor environments, protecting the duct core. Special coatings can further enhance this.

• Thermal Conductivity: While the foil itself is conductive, its role as part of an insulated duct is crucial. Its smooth surface effectively reflects radiant heat, contributing to the overall thermal efficiency of the duct assembly.

• Lightweight: Aluminum's low density makes handling, transportation, and installation of the ductwork significantly easier and more efficient.

Why 8011 Reigns Supreme Over Alternatives
Other alloys or materials are sometimes considered, but 8011 consistently proves superior:

• vs. 1145/1235: While highly flexible and formable, pure aluminum foils lack the necessary strength and puncture resistance for demanding duct applications. They are more prone to damage.

• vs. 3003: 3003 offers good corrosion resistance and moderate strength but is generally less strong than 8011 for the same thickness and can be slightly less formable in very thin gauges.

• vs. Plastic Films: While plastics offer moisture barrier properties, they lack the inherent strength, temperature resistance, dimensional stability, and fire safety characteristics of aluminum foil. Foil also provides a superior radiant barrier.

Conclusion: An Indispensable Component
Alloy 8011 aluminum foil is far more than just a wrapping; it's a critical, engineered component that defines the performance and longevity of flexible HVAC ductwork. Its unique combination of strength, flexibility, barrier properties, corrosion resistance, and light weight makes it the undisputed material of choice. By understanding the science and engineering behind this ubiquitous foil, HVAC professionals and building designers can appreciate its vital role in delivering efficient, reliable, and durable air distribution systems.
