Embossed Aluminum Sheet - Definition, Manufacturing, Properties, and Advantages

Aluminum sheet is a fundamental building block of modern industry. But when that flat surface transforms into a textured landscape of peaks and valleys, it unlocks a new dimension of functionality and aesthetics. This is the realm of embossed aluminum sheet – a versatile material engineered for performance and visual appeal. Understanding its nature, how it's made, and its inherent properties is key to appreciating its widespread adoption.

1. Defining Embossed Aluminum Sheet: Texture with Purpose

• Core Concept: Embossed aluminum sheet is a flat-rolled aluminum product that has undergone a specialized mechanical process to imprint a permanent, raised or recessed pattern onto one or both of its surfaces. This pattern is not merely decorative; it fundamentally alters the sheet's characteristics.

• The Embossing Process: Unlike coating or painting, embossing physically deforms the metal itself. This is achieved by passing the sheet between precisely engraved steel rolls under controlled pressure and tension. The pattern on the rolls is transferred onto the aluminum surface.

• Pattern Diversity: The variety of patterns is vast, ranging from simple lines (stucco, linen) and geometric shapes to complex designs and custom logos. Each pattern serves specific functional or aesthetic goals.

2. The Embossing Manufacturing Process: Precision Engineering
Creating consistent, high-quality embossed sheet requires meticulous control:

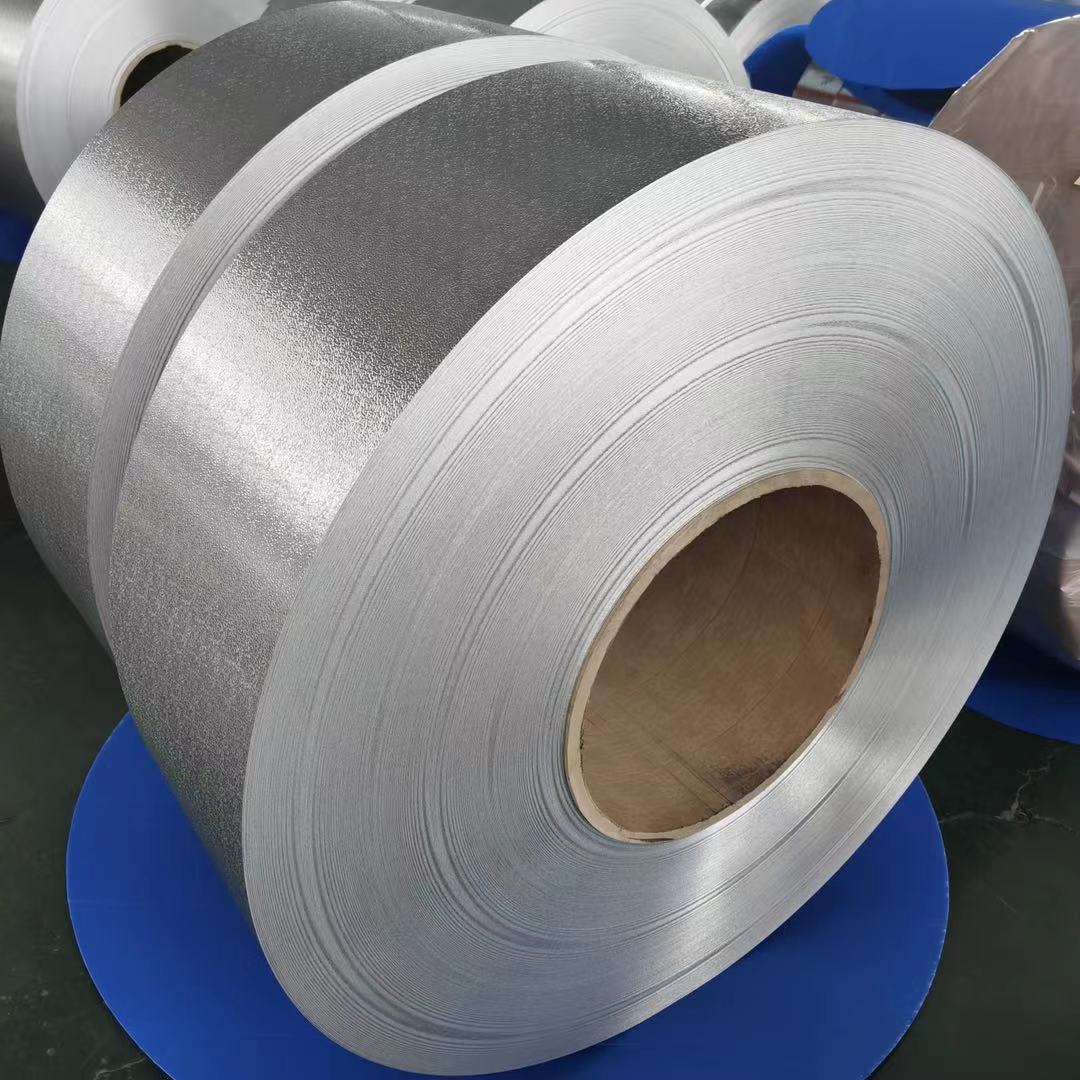

• Material Input: Starts with high-quality aluminum coil, typically from alloys like 1000 series, 3000 series, or 5000 series, chosen based on required properties.

• Surface Preparation: The aluminum surface must be clean and often chemically treated to ensure optimal adhesion if subsequent painting or coating is planned, and to prevent defects during embossing.

• The Embossing Mill: The heart of the process. The prepared coil is fed through a set of rolls:

  • Back-up Rolls: Provide structural support.

  • Embossing Rolls: Hardened steel rolls engraved with the desired negative image of the pattern. One roll typically patterns one side; a second set patterns the reverse if needed.

• Pressure & Tension Control: Precise hydraulic systems apply immense pressure to force the aluminum into the engravings on the pattern rolls. Simultaneously, controlled tension is maintained on the coil to ensure smooth feeding and consistent pattern depth across the sheet width and length.

• Lubrication: Often used to reduce friction, prevent galling, and ensure a clean pattern transfer, extending roll life.

• Pattern Depth Control: Depth is determined by roll engraving depth, applied pressure, and aluminum alloy properties. Consistency is paramount for uniform appearance and performance.

• Post-Embossing Treatments: The embossed coil may undergo:

  • Leveling: To ensure flatness.

  • Cutting: To sheet or specific sizes.

  • Finishing: Can include painting (PVDF, polyester, epoxy), anodizing, laminating, or simply being supplied mill-finish.

3. Key Properties Enhanced by Embossing
Embossing significantly modifies the base aluminum sheet's characteristics:

• Increased Rigidity and Stiffness: The three-dimensional pattern acts like microscopic corrugations, dramatically increasing the sheet's resistance to bending and buckling compared to flat sheet of the same thickness. This is crucial for applications like wall and ceiling panels, truck trailers, and partitions where rigidity is needed without excessive weight.

• Improved Slip Resistance: The textured surface creates friction, making it much safer for walking surfaces, ramps, steps, and platforms, especially when wet or oily. Diamond plate is the classic example.

• Enhanced Surface Durability: The peaks and valleys help mask minor scratches, dents, and handling marks that would be highly visible on a perfectly smooth surface. This maintains appearance over time.

• Light Diffusion & Glare Reduction: Textured patterns scatter reflected light, reducing harsh glare and creating a softer, more diffuse light reflection. This is beneficial for lighting fixtures, ceilings, and signage.

• Improved Paint Adhesion & Texture Retention: The textured surface provides significantly more "tooth" for paints and coatings to mechanically bond to, leading to better adhesion and longevity. The texture also helps maintain the aesthetic feel even after coating.

• Acoustic Dampening: Certain deep or irregular patterns can help absorb sound waves, contributing to noise reduction in architectural and transportation applications.

• Aesthetic Versatility: Embossing offers a vast array of visual and tactile effects, from subtle elegance to bold industrial statements, allowing designers significant creative freedom.

4. Material Specifications: Alloys, Tempers, and Thickness
Choosing the right combination is vital for performance:

• Common Alloys:

  • 1xxx Series: Excellent formability, corrosion resistance, and thermal/electrical conductivity. Used for decorative panels, lighting, simple fabrications where high strength isn't critical.

  • 3xxx Series: Good combination of formability, moderate strength, weldability, and corrosion resistance. Very common for architectural panels, roofing, siding, and general sheet metal work.

  • 5xxx Series: Higher strength, excellent corrosion resistance, good weldability. Used for marine applications, transportation, demanding architectural projects. 5754 is common in Europe for structural applications.

• Temper Designations: Indicates the hardness/strength level achieved through cold working or heat treatment.

  • Hxx Tempers: Most common for embossed sheet. Higher numbers  indicate greater hardness/strength but lower formability. H2x tempers are strain-hardened and partially annealed, offering a balance.

• Thickness Range: Embossed sheet is available in a wide range, typically from about 0.3mm (0.012") up to 6.0mm (0.250") or more, depending on the alloy and application. Common gauges for architectural panels are 0.7mm-1.2mm; for tread plate, 2.0mm-6.0mm.

Table 1: Common Embossed Aluminum Alloys and Typical Applications

5. Why Choose Embossed Aluminum? Compelling Advantages
The unique properties translate into significant benefits:

• Strength-to-Weight Ratio Champion: Embossing boosts rigidity, allowing thinner, lighter sheets to perform structural roles that would require thicker flat sheet or heavier materials like steel. This reduces material costs, transportation weight, and structural support needs.

• Unmatched Corrosion Resistance: Aluminum naturally forms a protective oxide layer. This inherent resistance, combined with appropriate alloy selection (e.g., 5xxx for marine) and finishes (paint, anodize), makes embossed sheet ideal for harsh environments (coastal, industrial) and long service life with minimal maintenance.

• Design Flexibility & Aesthetics: The sheer range of patterns, colors (via painting/anodizing), and formability allows architects and designers to achieve unique visual effects and tactile qualities, from sleek modernism to rugged industrialism.

• Durability & Damage Resistance: The textured surface effectively hides minor dings and scratches. The inherent toughness of aluminum and the rigidity from embossing create a surface that withstands impact and abrasion better than flat sheet or many other materials.

• Safety: Embossed tread plate is the industry standard for slip-resistant walking surfaces, crucial in industrial, transportation, and public access areas.

• Sustainability: Aluminum is highly recyclable (nearly 75% of all aluminum ever produced is still in use!). Embossed sheet contributes to this circular economy. Its longevity and low maintenance requirements further reduce lifecycle environmental impact.

• Ease of Fabrication: While stiffer than flat sheet, embossed aluminum remains readily cut, formed, bent, punched, and riveted using standard sheet metal equipment, facilitating complex designs and installations.

Conclusion
Embossed aluminum sheet is far more than just textured metal. It is a sophisticated engineered material where form meets function through a precise manufacturing process. Its enhanced rigidity, slip resistance, durability, aesthetic versatility, and inherent aluminum advantages like light weight and corrosion resistance make it an indispensable solution across countless industries. From the iconic diamond plate on a fire truck step to the subtly elegant ceiling panel in a modern airport, embossed aluminum sheet provides performance, safety, and beauty that flat surfaces simply cannot match.
