Selection principle and importance of bipolar stepper motor

1.What is s bipolar stepper motor?

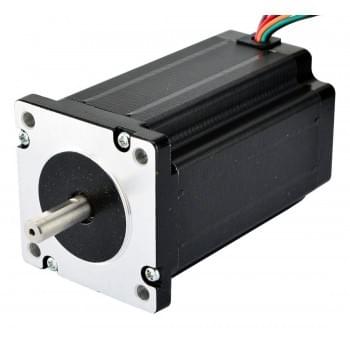

A bipolar stepper motor is a type of stepper motor that has two windings per phase and no center tap. This configuration allows for current to flow in both directions through each winding, enabling it to produce more torque compared to unipolar stepper motors of the same size. Bipolar stepper motors typically have four wires, with each wire connected to one end of each winding.

2.Main structure of bipolar stepper motor

1. Stator:The stator is the outer, stationary part of the motor. It contains two sets of windings, each constituting a phase. These windings are arranged in pairs, and each pair is connected to an H-bridge circuit. The H-bridge allows for current to flow in either direction through the windings, enabling polarity reversal.

2. Rotor:The rotor is the inner, rotating part of the motor. It is typically a permanent magnet with alternating north and south poles. The rotor is designed to align with the magnetic field generated by the stator windings.

3. Control and Functionality:Bipolar stepper motors require a driver circuit that can switch the current direction in the stator windings.

This is typically achieved using an H-bridge circuit for each phase. By sequencing the current direction in the windings, the rotor is made to step in discrete increments.

3.Importance of bipolar stepper motor

1.Higher Torque: Bipolar stepper motors typically provide higher torque at lower speeds compared to unipolar stepper motors. This makes them ideal for applications where torque is crucial, like in robotics, CNC machines, and 3D printers.

2.Simplicity and Efficiency: The bipolar stepper motor design is simpler than a unipolar motor because it requires only two coils, which makes it more efficient in terms of energy use. Fewer components lead to less heat generation and greater reliability.

3.Precise Control: Stepper motors, including bipolars, provide very precise control of position without needing feedback mechanisms, making them valuable for systems requiring exact movement, such as printers, scanners, and robotics.

4.Cost-Effective: Bipolar stepper motors are generally more affordable than other types of motors when compared in terms of performance-to-cost ratio, especially in applications where high torque and precision are needed.

5.Wide Range of Applications: They’re widely used in applications like robotics, CNC machines, 3D printers, and even in industries like textile manufacturing or medical equipment where precise movement is necessary.

6.Reliability: The simplicity of their design also contributes to their reliability and durability. They can function in harsh environments where other motors might fail due to mechanical complexity.

4.Selection principle of bipolar stepper motor

1.Torque Requirements: This is the torque the motor can generate when stationary. It should be sufficient for your application to prevent slippage or unwanted movement. If your system requires holding a position against external forces (like gravity or load), this is a critical factor.

2.Step Angle: The step angle determines the resolution of the motor. A smaller step angle means finer movement control, which is important for applications like CNC machines or 3D printers.Typical step angles for bipolar stepper motors are 1.8° (200 steps per revolution) or 0.9° (400 steps per revolution).

3.Voltage and Current Ratings: Choose a motor with the appropriate voltage rating for your power supply. The rated voltage often indicates the best performance in terms of speed and torque.The motor’s current rating determines how much power it consumes and the amount of torque it can generate. The current should match the capabilities of your driver and the motor’s power supply.

4.Speed : Bipolar stepper motors can achieve a high range of speeds, but the motor's maximum speed is typically inversely proportional to the load and torque. Ensure the motor can achieve the speed required for your application.

5.Physical Size and Mounting: The physical size of the motor should fit into your system's available space. This includes the motor’s length, diameter, and mounting type.Make sure the motor’s shaft and mounting holes are compatible with your equipment. A standard NEMA 17, 23, or 34 are common mounting standards for stepper motors.

6.Operating Environment: Consider the motor's operating temperature range if it will be used in an environment that has high or low temperatures. If your motor will be used in a dusty or humid environment, choose one with an appropriate ingress protection (IP) rating, which indicates how well the motor is sealed against external elements.

7.Efficiency and Power Consumption: A more efficient motor reduces power consumption, heat buildup, and running costs. Bipolar motors are generally more efficient than unipolar motors, but it's still important to look at efficiency ratings for specific applications.Select a motor that uses the least power for the required torque and speed.
